마노미터

P960 Series_Manometer

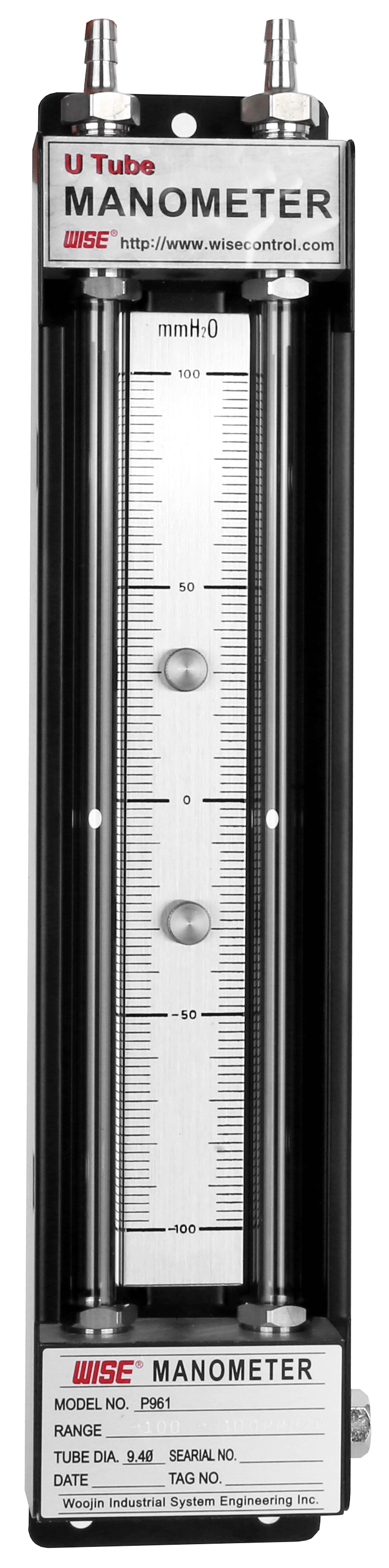

P961 - "U" type P962, P963, P964 - Inclined type P965 - Wall type

Service intended

P960 series manometer is a pressure measuring instrument, and it measures the for calibration of all pressure instruments. It is suitable for measuring low and vacuum pressure.

Scale range U type : 0 ~ ±100 to 0 ~ ±600 mm
Inclined type : 0 ~ 30, 60 and 150 mm
Wall type : 0 ~ 500, 1,000 and 1,500 mm

Standard features

Pressure connection Stainless steel (304SS)
tube connection for 8 mm
Tube Material : Glass
Outer diameter : 12 mm
In diameter : 9.4 mm (P961)
                    5.0 mm (P962, P963, P964, P965)
Working temperature Ambient : 15 ~ 25 ˚C
Fluid : Max. 35 ˚C
Measuring liquid Anti freezing liquid
Water
Scale plate White aluminium with stainless steel Black graduation
2 mm
Base plate SCP2, Black painted
Option : 304SS
Mounting Surface mounting
Option 304SS, Black painted
