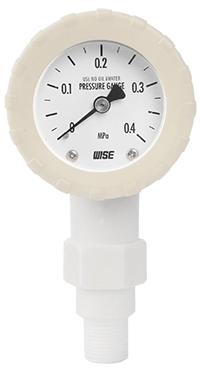

WISE CONTROL INC : P870 Series_Anti-corrosion pressure gauge

Service intended

P870 series provide a superior chemical resistant and non-viscous pressure gauge which employs fluorine resin for the wetted parts. It can be used with highly corrosive fluids. The case material is PP resin and resistance to corrosive environments.

Nominal diameter	50 mm
Accuracy	±1.5 % of full scale (Only available with 0.6 and 1 MPa) ±2.0 % of full scale
Scale range (MPa, kPa, bar)	0 ~ 0.1 MPa to 0 ~ 1 MPa
Working pressure	Steady pressure : 75 % of full scale
Working temperature limits	Ambient : 10 ~ 30 °C
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.8 % per 10 ℃ of full scale

Standard features

Pressure connection	Fluorine resin (PTFE, PFA)
Element	Bellows : Fluorine resin (PFA)
Case and cover	PP resin
Window	Screw type PET resin
Movement	Brass
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Process connection	⅜" PT, PF, tube (please consult about other connection)
Treatment	Assembly and adjustment : Clean room (Class 10,000) Treatment : Use no oil and water Packing : after N2 gas flushing, clean polyethylene hermetical sealed packaging
