: Explosive atmospheres"ia", "e"

Service intended

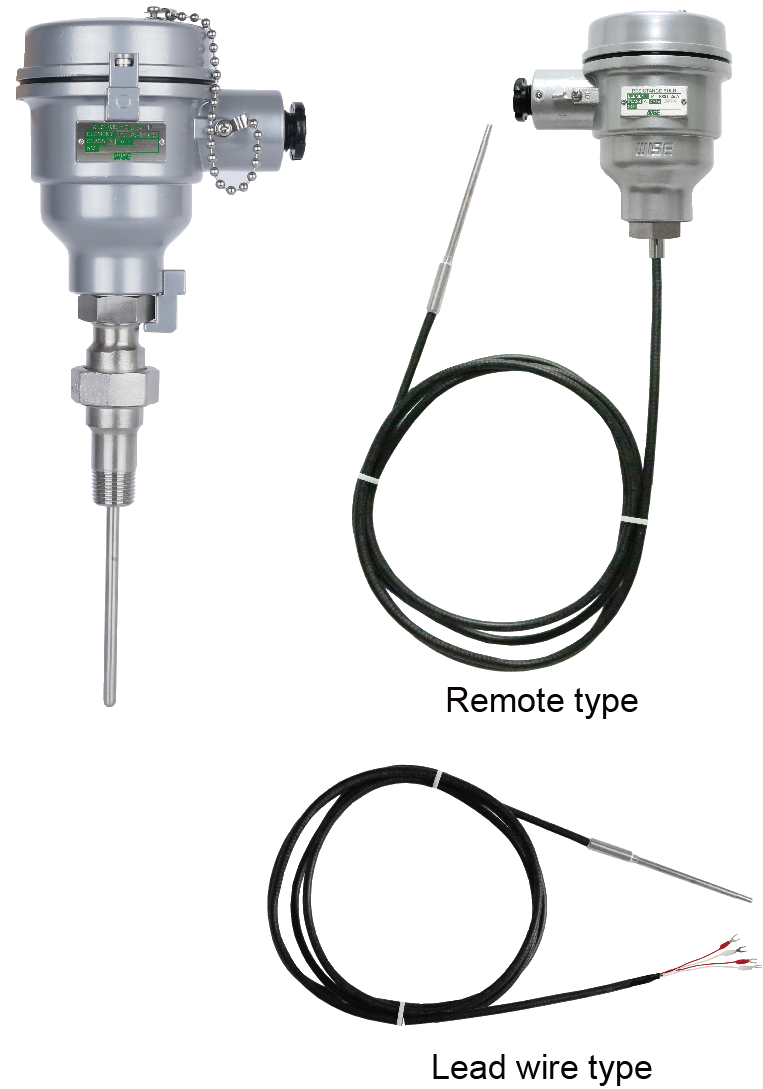

Measuring the temperature in the area where bustible gas, particles and flammable liquid exist can be a very dangerous task. The electrical energy of measuring instrument is lower than electric motor, however, the malfunction of the instrument or the accident can cause to start the explosion. Therefore, ETR10 series is explosion proof type product which is designed to be used in a critical danger zone (Ex e=Zone 1, Ex ia=Zone 0) by acquiring IECEx and ATEX certification.

Certificates

KCS Ex e IIC T6...T1
ATEX II 2G Ex e IIC T6...T1
IECEx Ex e IIC T6...T1 Gb
KCS Ex ia IIC T6
ATEX II 1/2G Ex ia IIC T6...T3 Ga/Gb
IECEx Ex ia IIC T6...T3 Ga/Gb
CSA Ex eb IIC T6...T1 Gb

Standard features

Element

RTD : Pt 100 Ω at 0 ℃

	ATEX	IECEx	KCS	CSA
Ex e	K, E, N		**	K, E, N
Ex ia	K, J, T, E, N, B, R, S			-

**: K, J, T, E, N, B, R, S

Standard nipple material

304SS (Head type only)

Standard nipple length

100 or 150 mm (Head type only)

Enclosure material

Die cast aluminium (ALDC) or 316SS (Head type only)

Standard measuring material

316SS

Electrical rating

10 mA 4 VDC resistance load

Standard process connection

½" NPT

Ambient temperature

-40 ~ +65 ℃ (Ex ia)
-40 ~ +65 ℃ (Ex e)
